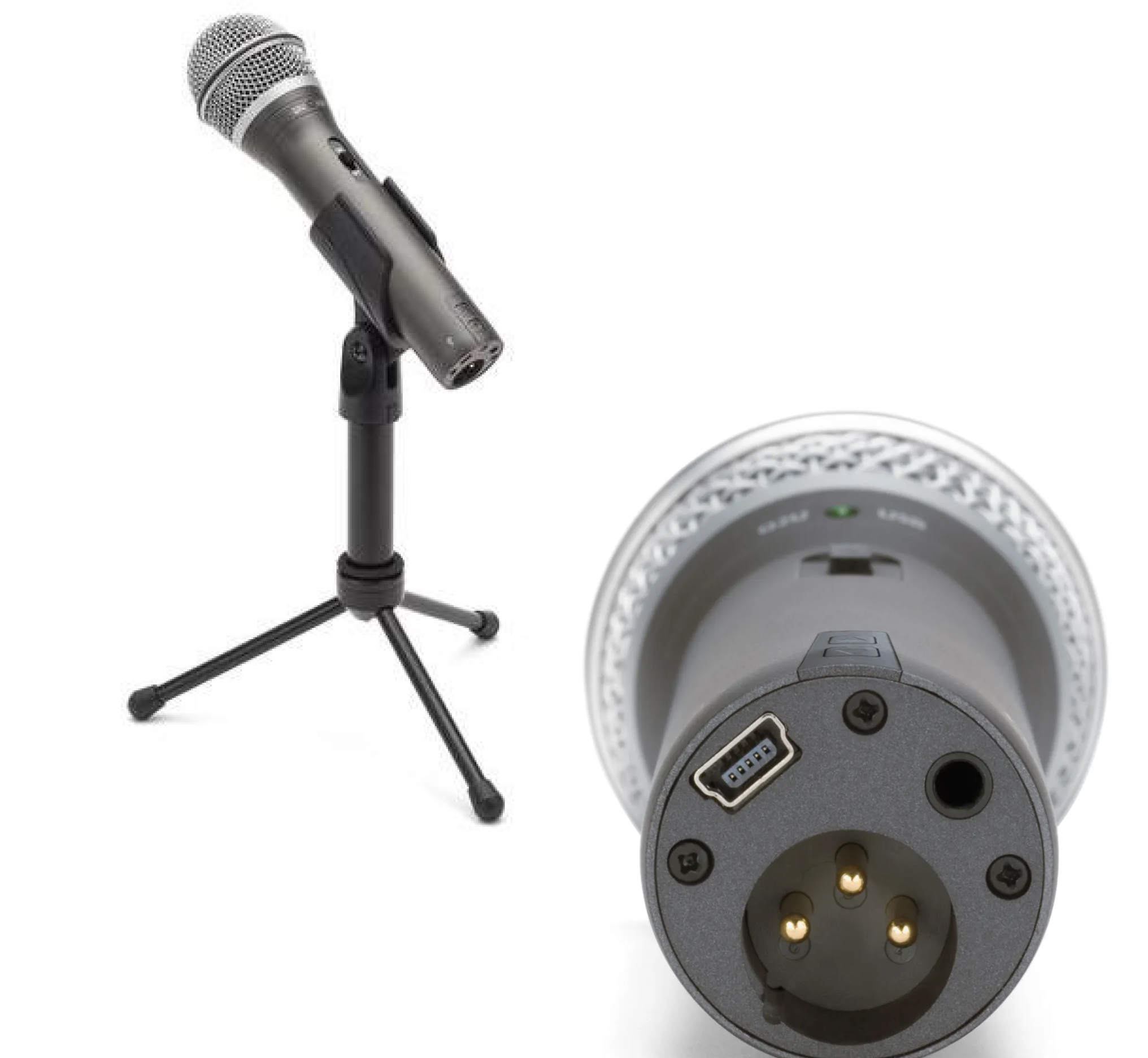

Microphone: Samson Q2U

This microphone allows you to connect via USB to your computer and certain mobile devices or via XLR to an audio interface.

Equipment Overview

Compatibility with Riverside	Computer Browser Riverside Mobile App (see below)
Connection type	USB-B Mini (Mic) to USB-A (Computer) or XLR (Mic) to Audio Interface
Manufacturer details	Full specs at samsontech.com

Connect your headphones directly to the computer instead of to the microphone to minimize any echo.
- When recording with the mobile app, connect the headphones directly to the microphone. (See below)

This mic is only compatible with the Riverside mobile app when using a device with a USB-C port:

iPad or iPhone with a USB-C port
Please note: Some external USB-C mics are not compatible with iOS 17 on the iPad.
1. On the Studio's Lobby screen, connect the microphone to the iPad or iPhone via USB-C.
2. Once you join the Studio, in the Wired connection pop-up:
  - Connect headphones to the microphone and tap No.
Android phone with a USB-C port
1. Connect the microphone to your device.
2. Connect headphones to the microphone to hear the Studio.

The LED on the mic's handle flashes red when the mic is overloaded or the sound is clipping.
- If it is clipping, move the mic further away from the person speaking.
If you cannot be heard in the Studio, check the physical on/off switch on the mic's handle.
- The output buttons near the mic's base only control the headphone output volume.
Troubleshooting: Microphone not recognized
